Drinking Water Filling Equipment

Drinking Water Filling EquipmentDrinking water filling equipment

Equipment profile:

Drinking Water Filling Equipment series apply to the production of non-carbonated drinks as pure water and mineral water, with optional capacity from 8000BPH to 48,000BPH.

Water bottling machineWater-bottling-machine-02Water-bottling-machine-04

Drinking water filling equipment1

Drinking Water Filling Equipment Technical parameters:

Model

XGF50/50/15

XGF60/60/15

XGF72/72/18

XGF80/80/22

Rinsing head

50

60

72

80

Filling head

50

60

72

80

capping head

15

15

18

22

Capacity

24000BPH

30000BPH

36000BPH

42000BPH

Dimension

4720×3550×2750

6000×5450×2750

6500×4680×2750

7800×6380×2750

Power

7.5KW

11KW

15KW

19KW



Equipment profile:

Drinking Water Filling Equipment series apply to the production of non-carbonated drinks as pure water and mineral water, with optional capacity from 6000BPH to 18,000BPH.

Drinking water filling equipment

Technical parameters:

Model

XGF16/16/5

XGF24/24/8

XGF32/32/8

XGF40/40/10

Rinsing head

16

24

32

40

Filling head

16

24

32

40

Capping head

5

8

8

10

Capacity

8000BPH

12000BPH

15000BPH

18000BPH

Dimension

2850×2150×2750

2880×2180×2750

3380×2580×2750

4430×3280×2750

Power

2.2KW

2.2KW

3KW

7.5KW

Leave a Reply

Your email address will not be published. Required fields are marked *

Related products

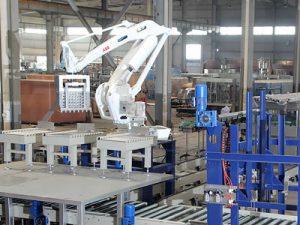

  • Palletizing Robot
